氣缸類型

Cylinder type

GT系列、AT系列 GT series, AT series

閥門類型

Valve type

中線式蝶閥 Center line butterfly valve

作用方式

Work way

雙作用活塞式、單作用彈簧復位式

Double acting piston type, single acting spring return type

閥門型號

Valve type

GIQ

氣源壓力

Air pressure

4~8Bar

連接方式

Connection mode

JB919 對夾法蘭 JB919 clamp flange

工作介質

Working medium

干燥、清潔不含腐蝕氣體

Dry and clean without corrosive gas

公稱通徑

Nominal diameter

DN40～1200mm

工作溫度Working temperature

常溫型：-20℃~80℃(丁腈橡膠O型圈) Room

temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings)

公稱壓力

Nominal pressure

105～1.3X10- 4 Pa

高溫型：-20℃~160℃(氟橡膠O型圈) High temperature

type: - 20 ℃ to 160℃ (fluorine rubber O-rings)

閥體材質

Body material

碳鋼、不銹鋼304/316

Carbon steel, stainless steel 304/316

動作范圍

Range of motion

0~90°±5°

蝶板材質

Butterfly material

碳鋼、不銹鋼304/316

Carbon steel, stainless steel 304/316

接口螺紋

Interface thread

GT52~GT83 G1/8"

閥座密封

Seat tightness

丁腈橡膠、氟橡膠等

Nitrile rubber, fluorine rubber, etc

GT110~GT210 AT52~AT210 G1/4"

適用溫度

Suitable temperature

EPDM≤80℃ 氟橡膠 Fluorine rubber≤150℃

閥位信號

Valve position signal

定位器：4~20mA/回信器：全開全關信號

Locator: 4~20mA/reply: full ON/OFF signal

適用介質

Applicable medium

空氣 Air

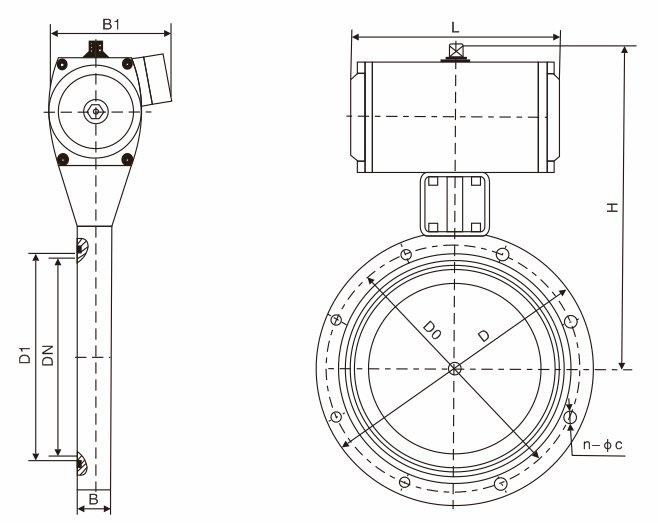

GIQ-40

40

85

70

44

22

162

90

104

4-φ7

GIQ-50

50

110

90

55

22

175

90

104

4-φ7

GIQ-65

65

125

105

70

26

198

102

140

4-φ9

GIQ-80

80

145

125

85

30

208

102

140

4-φ9

GIQ-100

100

170

145

105

30

220

102

140

4-φ12

GIQ-150

150

220

195

156

35

272

115

164

8-φ12

GIQ-200

200

275

250

208

40

330

205

190

8-φ12

GIQ-250

250

330

300

258

45

335

205

190

8-φ14

GIQ-300

300

380

350

308

55

426

152

247

8-φ14

GIQ-400

400

500

465

410

60

520

180

308

8-φ18

GIQ-500

500

600

565

510

80

643

220

378

12-φ18

GIQ-600

600

710

670

610

100

760

270

524

12-φ21

GIQ-800

800

920

880

815

130

962

320

648

20-φ21

GIQ-1200

1200

1440

1404

1280

150

1360

385

1480

36-φ19
