DW2.5*24
直接聯系
常州新馬干燥工程有限公司
江蘇省常州市
5-10萬元
新馬干燥
DW2.5*24
7158
多種
節能高效、價廉質高
食品、化工、醫藥
云天化集團、陜西姑蘇空調凈化有限公司、江蘇經海化學科技集團有限責任公司

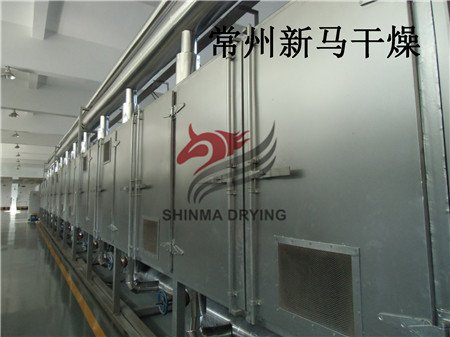

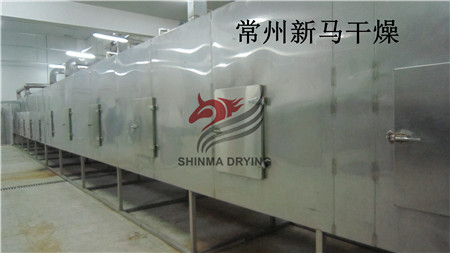

常州新馬干燥DW2.5-24型帶式干燥機性能參數
設備組成
Equipment composition:
整臺設備為不完全封閉型，由擺動布料段、干燥段、出料段、物料輸送系統、換熱系統及控制系統等部分組成。擺動布料段作用使海藻膠均勻分散在金屬網帶上，并且勻速輸送到干燥段，海藻經熱風干燥后，再經過出料段排料。
The equipment is not incomplete enclosed type, it is composed of Distributor, Drying section, Discharging section, Material delivery system, heat exchanger and control system.
Purpose of swing distributor is to distribute the raw material on belt uniformly, after drying section, the finial products is discharged by discharging section.
干燥機材質
Material of Drying machine:
1.內壁SUS304，外壁SUS304不銹鋼板；
Inside wall SUS304, outside wall SUS304
2.鏈輪、鏈條碳鋼，鏈條節距203.2；
Chain wheel and chain link C.S, Chain link pitch 203.2;
3.網帶材料為不銹鋼：開孔率13%,長腰孔1.14X6mm；
Material of belt apron is stainless steel, open area 13%, ell type 1.14X6mm；
4.風機不銹鋼，風機頂部隔熱層采用硅酸鋁材料保溫；
Fans stainless steel, the heat preservation material on the top of fans alumina silicate;
5.風機頂部的風管及排風管均為SUS304不銹鋼材料；
Air pipes and air exhaust pipes on the top of fans SUS304.
6.擋料板材質SUS304，高度120
Striker plate SUS304, Height 120.
