概述 Descriptions

振動流化床采用雙質體共振式結構形式，慣性激振器與共振質體組成一個共振單元，用普通電機通過萬向節帶動齒輪激振器產生激振力，激振力經共振彈簧放大數倍后作用于工作質體，使物料處于流化狀態，被處理物料在這種激振力的作用下跳躍前進，同時振動流化床底部輸入的熱風穿過料層，物料顆粒與熱風充分接觸從而達到理想的干燥效果。

The vibrating fluidized bed dryer adopts the structure of two-body resonant. The inertial exciter and the resonant mass form a resonance unit, ordinary motor drives the gear excitatory through the universal joint. The exciting force is amplified by resonance spring Several times on the working body, the material in a fluidized state and jump forward by exciting force, while the Hot air through layer at the bottom of the vibrating fluidized bed, the material particles and hot air are fully Contact to achieve the desired drying effect.

特點 Features

1. 振動源是采用振動電機驅動，運轉平穩，維修方便，噪音低，壽命長。

Vibration source adopt vibration motor driven, smooth operation, easy maintenance, low noise, long working life;

2. 流態化勻稱，無死空隙和吹穿現象，可以獲得均勻的干燥，冷卻制品。

Fluidized symmetry, no dead space and the phenomenon of blowing, can get a uniform drying, cooling products;

3. 可調性好，適用面寬。料層厚度和在機內移動速度以及全振幅變更均可實現無級調節。

Adjustable, widely application. Material layer thickness and in-machine movement speed and full amplitude change can be achieved by stepless adjustment;

4. 對物料表面的損傷小．可用于易碎物料的干燥，物料顆粒不規則時亦不影響工作效果。

Small damage to the materials surface. It can be used for fragile materials, irregular particles does not affect the drying;

5. 采用全封閉式的結構．有效地防止了物料與空氣間交叉感染，作業環境清潔。

Fully enclosed structure, Keep the operating environment clean, preventing the material and air cross-infection;

6. 機械效率與熱效率高，節能效果好，比一般干燥裝置可節能30一60％。

High Mechanical, thermal efficiency and energy-saving, It can 30 to 60% energy than other drying device.

適應物料 Application

1. 共聚物及其單體等有機物如：MBS、ABS、己二酸、聚丙烯酰胺、丙烯酰胺晶體、聚四氟乙烯、酚醛樹脂、尼龍 66 、聚丙烯樹脂、滌綸切片、聚氯乙烯。

Polyamide, acrylamide crystal, polytetrafluoroethylene, phenolic resin, nylon 66, polypropylene resin, polyester chips, polyvinyl chloride (PVC), polyacrylamide, polyacrylamide and so on;

2. 無機鹽如：純堿、食鹽、硝 酸銨、碳酸鉀、氯 酸鉀、氯化鉀、硝酸鉀、磷酸鉀、硫酸鉀。

Norganic salts such as: soda ash, salt, ammonium nitrate, potassium carbonate, potassium chlorate, potassium chloride, potassium nitrate, potassium phosphate, potassium sulfate;

3. 飼料行業肥料行業：發酵飼料、膨化顆粒飼料、有機肥等。

The feed industry fertilizer industry: fermented feed, extruded pellet feed, organic fertilizer;

4. 廢物處理環保行業：干燥酒精糟、抗 生素渣、垃圾等。

Waste treatment and environmental protection industry: alcohol bad, antibiotic residue, garbage and so on.

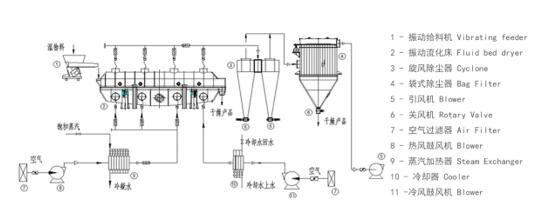

工藝流程圖 Sketch of Flow Chart
