概述 Descriptions

回轉圓筒干燥機是一種處理大量物料的干燥設備，運轉可靠，操作彈性大，適應性強，處理能力大，物料的適應性強，可以烘干各種物料，且設備操作簡單可靠。廣泛用于建材，冶金、化工、水泥工業烘干礦渣石灰石、煤粉、礦渣、粘土等物料。

回轉圓筒干燥機主要由回轉體、揚料板，傳動裝置，支撐裝置及密封圈等部件組成。干燥機是一個與水平方向略成傾斜的圓筒，物料從較高的一端加入，高溫?zé)釤煔馀c物料并流進入筒體，隨著筒體轉動，物料運行到較低一端。在圓筒內壁上的抄板把物料抄起又灑下，使物料與氣流的接觸表面增大，以提高干燥速率并促進物料前行。干燥后的產品從底端下部收集。

Rotary drum dryer is a kind of drying equipment for large amount of materials processing. It is reliable, flexible，applicable in drying various materials. Widely used in building materials, metallurgy, chemical and cement industry for drying slag limestone, coal, slag, clay and other materials.

Rotary drum dryer mainly build by body, lifting plate, transmission, support devices, seals and other components. The dryer is a cylinder inclined slightly horizontally. The material is fed from the higher end, the high temperature gas flows into the cylinder in parallel with the material, and the material moves to the lower end. The Parallel pick up the material and shed inside the cylinder, it makes the material and air contact surface increased, also it improve the drying rate and promote the material forward. The dried product is collected from the lower end of the drum.

特點 Features

1.干燥機處理能力大，燃料消耗少，干燥成本低;

High drying capacity, less fuel consumption and low cost of drying;

2.干燥機具有耐高溫的特點，能夠使用高溫?zé)犸L(fēng)對物料進行快速干燥;

High Temperature resistance, Rapid drying via hot air;

3.可擴展能力強，設計考慮了生產余量，即使產量小幅度增加，也無需更換設備;

Overload Design production margins, even if a small increase in production, there is no need to replace the equipment;

4.設備采用調心式拖輪結構，拖輪與滾圈的配合好，大大降低了磨損及動力消耗;

The device uses self-aligning tug structure, the tug and the rolling circle well cooperation greatly reducing the wear and power consumption;

5.專門設計的擋輪結構，大大降低了由于設備傾斜工作所帶來的水平推力;

Specially designed wheel block structure, greatly reducing the tilt caused by the work of equipment horizontal thrust;

6.抗過載能力強，筒體運行平穩，可靠性高。

Anti-overload capability, the cylinder smooth operation and high reliability.

適應物料 Application

1.化工、礦工、冶金等行業，如礦石、礦渣、煤、金屬粉末、粘土、硅藻土、高嶺土;

 Chemical, mining, metallurgical and other industries, such as ore, slag, coal, metal powder, clay, diatomaceous earth, kaolin;

2.農業、飼料、肥料行業，如秸稈、牧草、樹葉、魚粉、玉米醬、淀粉渣、酒糟、藥渣、果渣、醬油渣、甘蔗渣、草炭、有機復合肥、污泥、水產品廢料、食品廠廢料、屠宰廠廢料、有機肥料、無機肥料、磷肥硫銨;

agriculture, feed, fertilizer industry, such as straw, grass, leaves, fish meal, corn paste, starch residue, lees, dregs, pomace, soy sauce residue, bagasse, peat, organic fertilizer, sludge, aquatic products Waste, food factory waste, slaughterhouse waste, organic fertilizer, inorganic fertilizer, ammonium phosphate fertilizer;

3.對有特殊要求的粉狀、顆粒狀物料干燥。如各種結晶體、輕質碳酸鈣、活性白土、磁粉、石墨、無機泥漿、陶土、石灰漿、礦石泥漿、磷礦渣、鋁廠赤泥;

Special requirements of the powder, granular material drying. Such as various crystal, light calcium carbonate, activated clay, magnetic powder, graphite, inorganic mud, clay, lime slurry, ore mud, phosphate slag, aluminum red mud;

4.要求低溫干燥，且需要大批量連續干燥的物料

low-temperature drying, It’s suitable for large quantities of continuous drying of the material

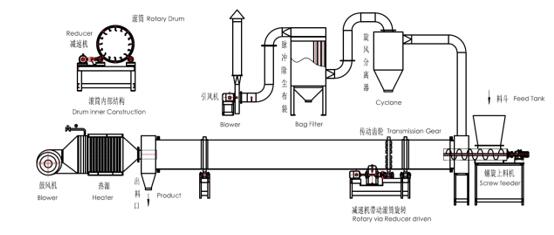

工藝流程圖 Sketch of Flow Chart
