概述 Descriptions
旋轉閃蒸干燥機是一種帶有旋轉粉碎裝置的立式干燥器，能同時完成物料的干燥、粉碎、分級等操作，是為干燥濾餅狀、膏糊狀、稀泥漿狀物料而專門設計的一種連續干燥設備。
經熱源加熱的潔凈的熱介質沿切線形式進入干燥室，與機械攪拌機構一起形成強有力的渦旋式旋轉氣流。濕物料由加料器定量加入干燥室，在攪拌和渦旋氣流的作用下被粉碎干燥。干燥室頂部設有粒度分級器，符合干燥要求的細粉末從塔頂排出，由后面的分離器收集下來，未達到干燥要求的較大顆粒由分級環阻擋，重新返回干燥室，繼續被粉碎干燥，直到干燥成合格產品后，隨熱空氣排出干燥室，由分離器收集下來。潔凈的尾氣在引風機的作用下排空。
Spin Flash Dryer is a vertical dryer with a rotary shredding device. It can dry, crush and classify materials at the same time. It is continuous drying equipment, specially designed for drying cake-like, pasty and slime-like materials.
The clean heat medium heated by the heat source enters the drying chamber in a tangential form, its forms a powerful swirling flow with the mechanical stirring mechanism. The wet material is feted into the drying chamber quantitatively by the screw feeder, and is crushed and dried under the action of agitation and vortex airflow. The top of the drying chamber is provided with a particle size classifier. The fine powder meeting the requirements is discharged from the top of the column and collected by the back separator. The larger particles which are not meeting the requirements are blocked by the classifying ring and returned to the drying chamber. until these power meet the requirement, It will be discharged with the hot air from the drying chamber, collected by the separator. Clean exhaust released to the air by exhaust fan.
特點 Features
1. 旋流、流化、噴動及粉碎分級技術的有機結合；
Swirl, fluid, spray and crushing the organic combination;
2. 設備緊湊，體積小，生產效率高；
Compact equipment, small size, high production efficiency;
3. 干燥強度大，能耗低，熱效率高；
Drying intensity, low energy consumption, high thermal efficiency;
4. 物料停留時間短，成品質量好，可用于熱敏性物料干燥；
Material retention time is short, the finished product of good quality, can be used for heat-sensitive materials drying;
5. 負壓或微負壓操作，密閉性好，效率高，消除環境污染。
Negative pressure or micro-negative pressure operation, good airtight, high efficiency, and no environmental pollution.
適應物料 Application
1.有機物：阿特拉津(農藥殺蟲劑)、月桂酸隔、苯甲酸、安息香酸、殺菌丹、
草酸鈉、醋酸纖維素、有機顏料等;
Organic matter: atrazine (pesticide pesticides), lauric acid separated, benzoic acid, benzoic acid, bactericidal Dan,Sodium oxalate, cellulose acetate, organic pigments and so on;
2.染料：蒽醌、黑色氧化鐵、靛藍顏料、丁酸、氫氧化鈦、硫化鋅、各種偶
氮染料中間體;
Dye: anthraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various even Nitrogen dye intermediates;
3.無機物：硼砂、碳酸鈣、氫氧化物、硫酸銅、氧化鐵、碳酸鋇、三氧化銻、
各種金屬氫氧化物、各種重金屬鹽、合成冰晶石等;
Inorganic substances: borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide,Various metal hydroxides, various heavy metal salts, synthetic cryolite and so on;
4.食品：大豆蛋白、膠凝淀粉、酒槽、小麥糖、小麥淀粉等。
4.Food: soy protein, gelatinized starch, wine tank, wheat sugar, wheat starch.

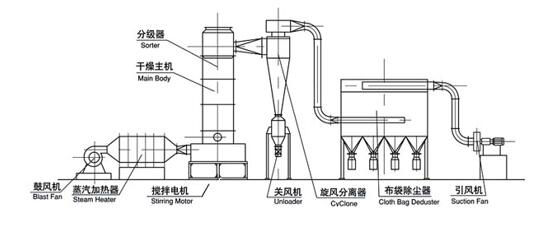

工藝流程圖 Sketch of Flow Chart
