KFM25L-120L
直接聯系
湖南歐華科技有限公司
湖南株洲
面議
歐華科技
KFM25L-120L
12566

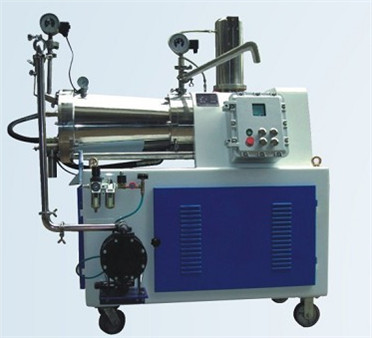

KFM25L-120L大容量臥式砂磨機
應用/Applications
◆平版印刷油墨/Lithographic inks ◆UV印刷油墨/UV printing inks
◆汽車漆/Automotive paint ◆色漿/Color paste
◆網版印刷油墨/Screen Printing Inks ◆圖片印刷油墨/Photo printing ink
◆電子油墨/Electronic ink
特點/Features
◆機身隨處可移，幾乎零震動，噪音極低 ◆研磨腔錐型構造，產品在高黏度下流動暢通無阻
◆采用螺旋輸送器，加快研磨介質、朝離心及軸向方向運動 ◆高精度間隙隔離具有自動清洗功能
◆研磨腔錐型構造，研磨腔蓋可開啟，便于清洗換色 ◆隔離間隙冷卻、前端冷卻、定子冷卻、機封冷卻
◆研磨腔體和分散葉均采用耐磨材料，生產出高質不變色的產品
◆工作壓力和溫度，冷卻水壓和溫度實行自動監控，可實現全自動作業
◆Body can be moved anywhere, almost zero vibration, low noise
◆Conical grinding chamber constructed to ensure high viscosity products at the free flow
◆Spiral conveyor speeds grinding media toward centrifugal and axial direction
◆Precision gap separation with automatic cleaning function
◆Conical grinding chamber and grinding chamber cover can be opened for easy cleaning and color changing
◆Isolation gap cooling, front-end cooling, stator cooling and mechanical seal cooling
◆Grinding chamber and dispersing leaves are made of wear-resistant material to produce high-quality products that do
not change color
◆Working pressure and temperature, cooling water pressure and temperature can be monitored automatically enables fully
automatic operation
標準配置/Standard Configuration
◆雙重機械密封/Double mechanical seal
◆精密進口軸承/Imported precision bearings
◆隔離間隙冷卻、前端冷卻、定子冷卻/Isolation gap cooling, front-end cooling, stator cooling
◆自動防呆壓力裝置（工作壓力、水壓）
Automatic Foolproof pressure device (working pressure, water pressure)
◆自動防呆溫度裝置（工作溫度、水溫）
Automatic Foolproof Temperature Devices (working temperature, water temperature)
◆防爆裝置/Explosion-proof device
◆送料泵浦（齒輪泵/隔膜泵）/Feeding pump (gear pump / diaphragm pump)
技術數據/Technical Data
型號/Model KFM-25LA KFM-60LA
容量/Capacity （L） 25 60
主機功率/Motor Power（KW） 22 37
冷卻水/Cooling Water（m3/h） 3000 3000
空氣壓力/Air Pressure Bar 4-8 4-8
產品流速/Product Flow Rate（L/h） 200-500 300-1200
研磨介質/Grinding Media （Φmm） 0.6-2.0 0.6-2.0
凈重/Weight（kg） 1000 1400
