KFM-28LB/C型
直接聯系
湖南歐華科技有限公司
湖南株洲
面議
歐華科技
KFM-28LB/C型
5648

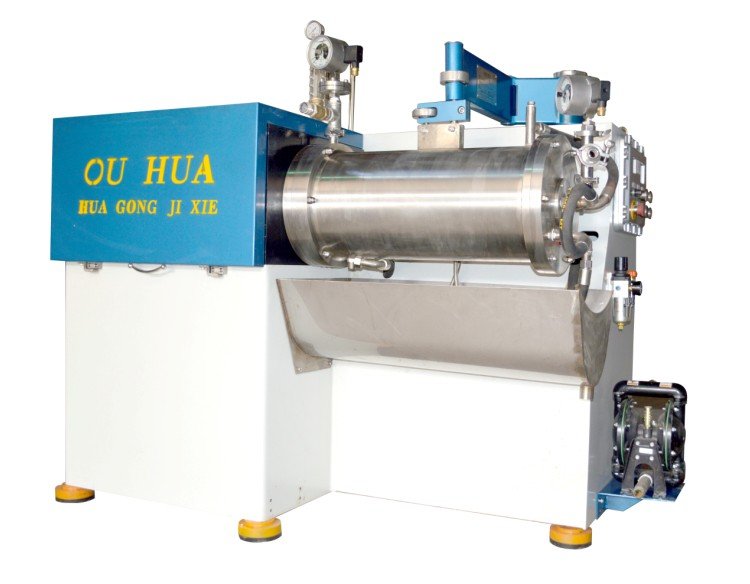

KFM-28LB/C型通用臥式錐型砂磨機
說明
機械密封：雙端面機械密封，機械密封內的O形密封圈均采用杜邦公司產品。
1、不同的線速度，由高速轉低速研磨。
2、內外桶夾層冷卻、轉子雙層冷卻、前端蓋冷卻、分離室冷卻、機封冷卻。
3、高質高效，不變色的研磨分散。
4、研磨筒、轉子、棒釘均采用進口高耐磨鋼，搭配高細密性耐磨合金（優于YG8、YG6合金）。
Attention:
Mechanical Seal, Double Mechanical Seal and O Type Mechanical Seal are all made by Du Pont Company.
1、Different linear velocity grinding from high to low speed
2、Both inside and outside bucket cooling, rotor double-layer cooling, front cover cooling, separate chamber cooling and mechanical seal cooling
3、High quality, high efficiency and unchanged color grinding and dispersing
4、Grinding bucket, rotor, rod pin made of imported alloy steel with high wear-resistance and condense (better than YG8, YG6 Alloy)
應用/Applications
◆平版印刷油墨/Lithographic inks ◆UV印刷油墨/UV printing inks
◆汽車漆/Automotive paint ◆色漿/Color paste
◆網版印刷油墨/Screen Printing Inks ◆圖片印刷油墨/Photo printing ink
◆高黏度漿料/High viscosity slurry
特點/Features
◆電機安裝在簡潔的機器框架上，通過防靜電V型散熱皮帶來保證能量傳送、噪音極低
◆采用錐型筒體、螺旋型分散盤，使物料進入研磨腔就能達到**研磨，單次研磨能達到**研磨和分散效果
◆高精密間隙自潔功能，采用Φ0.3-2.0mm的研磨介質
◆雙機械密封，可承受更高工作壓力
◆研磨腔體、端蓋采用機械開啟，方便拆洗；研磨腔間隙攪拌器為高耐磨材料，可降低產品交叉污染，易于更換產品
◆定子、隔離環二重高效冷卻，前端蓋冷卻、轉子冷卻（B型）、機封冷卻
◆Motor is mounted on the succinct machine frame to ensure the transmission of energy through anti-static and dissipation
V-belt with low noise
◆Using bi-conical cylinder, spiral scattered disk, the material into the grinding chamber can achieve maximum grinding and
lead a single hit grinding and dispersion
◆High precision gap self-cleaning function, using φ0.3-2.0mm grinding media
◆Double mechanical seal can withstand higher operating pressures
◆Grinding chamber, cover with mechanical open, easy washable; grinding chamber gap blender made of high wear-resistant
materials, can reduce cross-contamination and easy replacement of the product
◆Stator and spacer ring double efficient cooling, the front cover cooling, rotor cooling (B type), and mechanical seal cooling.
標準配置/Standard Configuration
◆轉子（B型）、定子、雙循環冷卻系統/Rotor (B type), a stator, double-loop cooling system
◆精密進口軸承/Imported precision bearings
◆耐壓雙機械密封、精密間隙分離器/Withstand double mechanical seals, precision gap separator
◆研磨介質、物料收集托盤/Grinding media, material collection tray
◆送料泵浦（應客戶需要，進口齒輪泵、氣動泵）
Feeding Pump (in response to customer needs, imported gear pump, pneumatic pump)
◆防爆裝置、水壓控制防呆裝置/Explosive devices, water pressure control devices
◆研磨腔：自動防呆壓力裝置、自動防呆溫控裝置
Grinding chamber: Automatic fail-safe pressure device, automatic temperature control device foolproof
技術數據/Technical Data
型號/Model KFM-28LB/C
容量/Capacity （L） 28
主機功率/Motor Power（KW） 22
冷卻水/Cooling Water（m3/h） 1500-3000
產品流速/Product Flow Rate（L/h） 400-1000
研磨介質/Grinding Media （Φmm） 0.3-2.0
凈重/Weight（kg） 1200
