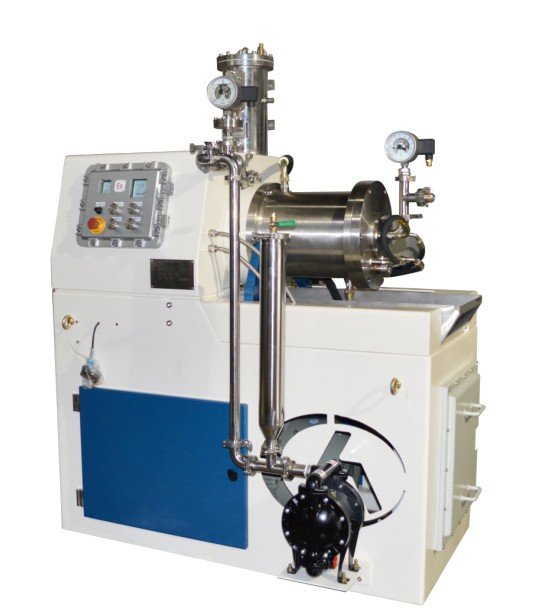

PT10L漸開線銷棒納米砂磨機

特點/Features

◆銷棒式結構，漸開線銷棒納米砂磨機。特點：防堵塞、大流量、超精細研磨

◆采用進口特種篩網分離器、不堵塞、大流量、超耐磨，適用于0.2-1.2mm的研磨介質

◆研磨部件（可隨用戶選定硬質合金、陶瓷）、高耐磨、抗腐蝕

◆散熱性**，五路冷卻：中心軸、端蓋、研磨桶、密封系統、出料篩管座水夾套

◆采用雙端面機械密封，耐受0.8mapa壓力

◆精密進口軸承

◆電接點壓力表

◆電接點溫度計

◆防爆等級：Exe dII BT4

◆送料泵浦

◆白色產品不變灰

◆Peg structure, anti-clogging, high flow, ultra-fine grinding

◆Imported special mesh separators, non-blocking, high flow, ultra wear-resistant, use of 0.2-1.2mm grinding media.

◆Grinding parts (Available for user-selected carbide, ceramics), high wear-resistance, corrosion resistance

◆Excellent heat dissipation, 5-way cooling system : central axis, end caps, grinding barrels, sealed system, discharging

    water jacket seat

◆Double acting mechanical seal, tolerance 8mpa pressure.

◆Imported precision bearings

◆Electrical contact pressure meter

◆Electrical contact thermometer

◆Explosion-proof grade: Exe dll BT4

◆Feeding Pump

◆White Product uncontaminated

技術數據/Technical Data

型號/Model                              PT10L

容量/Capacity（L）                       10

電動機功率/Motor Power（KW）             22

冷卻水/Cooling Water（m3/h）                  2000

產品流速/Product Flow Rate(L/h)               300-1000

空氣壓力/Air Pressure(bar)                   3.4-4.8

研磨介質/Grinding Media(φmm)                        0.2-1.2

凈重/Weight(kg)                             1000
