LLW臥式螺旋卸料沉降離心機
直接聯系
江蘇圖勝離心機制造有限公司
江蘇
面議
圖勝
LLW臥式螺旋卸料沉降離心機
1270

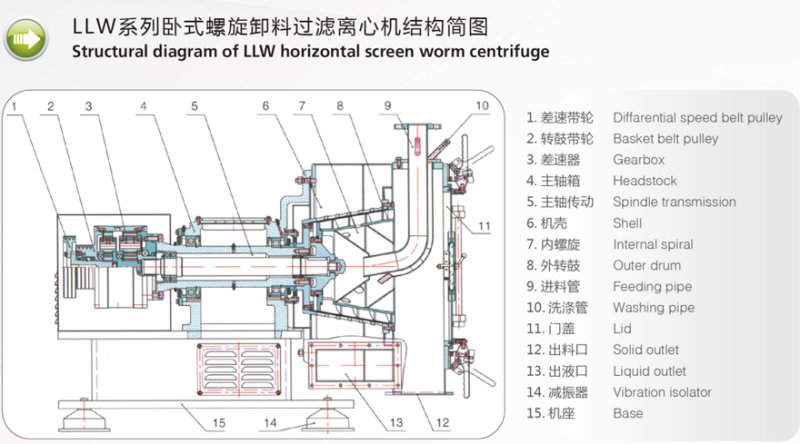

工作原理
Operating principle
LLW型臥式螺旋卸料過濾式離心機是種能耗低性能穩定、分離效果好的機型。分離過程中的進料、脫水、洗滌、卸料等工序連續完成，生產效率和自動化程度高，是種先進的固液分離設備。懸浮液從進料管進入螺旋內腔，并通過螺旋小頭接近錐端底部的噴料口進入轉鼓，在離心力場的作用下，料漿中的液相通過鋪設在轉壁上的篩網被過濾出去，固相顆粒則被截留在轉鼓內;同時，轉鼓內的固相顆粒在離心力和螺旋與轉鼓之間的相對差速作用下，從轉鼓小端向轉鼓大端運動，在此運動過程中，由于回轉直徑的加大，離心力得到快速遞增，固相從初始進入時的較高含濕量到排出轉鼓時達到*低含濕量固相，從而實現固液相自動、連續的分離。離心機內置洗滌管，可在濾餅過濾的同時對濾餅進行洗滌。由于是薄層濾餅洗滌，洗滌效果好，洗滌液消耗低。在轉鼓背面可設計蒸汽管，對轉鼓背面結晶的物料進行高溫洗滌。螺旋差速器有擺線差速器，行星差速器和液壓差速器三種配置，滿足不同物料的分離。
LLW series conveyor discharge screen centrifuge is the one with low eneray consumptionstable performance and good separating effectiveness. The separation processing from feeding to dewatering,cleaning and discharging is continuous with high processing efficiency and high degree of automation. Jt is the advanced separation equipment The feed suspension is introduced to the centrifuge through a feed pipe and into the feed distribution chamber and is jetted into the baske through the hole near the cone point of the convelior.Under centrttugal force the solids filtrate trm the liquid and settle against the basket wall. while the clarified iquid exits over the overflow screen. The solids in the conical basket are conveved up from the smaller end to the bigger end while the convevor turns at a sliahtly diferent speed. The biager diameter is.the biaaer centrifuaal force produces to separate the liquid/solids.The solids are dried when thev are drained out the basket.The washing pipe incorporated in the centrifuge can not only filter the solid cake,but also wash the cake. The thin cake washing achieves qood effects of washing and consumes low amount of washling Jiquid.A steam pipe may be provided on the back of the basket so as to wash the crystattized m als on the back at high temperature Gearbox: cycloidal gearbox,planetary gearbox and hydraulic gearbox so as to suit for separation of different materials.
LLW臥式螺旋卸料過濾式離心機廣泛應用于化工、食品、鹽、采礦、制藥等行業。因其分離原理和結構特性，其對物料的針對性也較強
主要話用干具有較大顆粒度，對顆粒破碎沒有嚴格要求的物料。在選型時應進行物料分析和相應的試驗，以確定其話用和分離性能。(我
們有超過上百種物料應用數據及成功經驗，在選型時可與我們的技術人員進行溝通，以便獲取更詳盡的資料)
