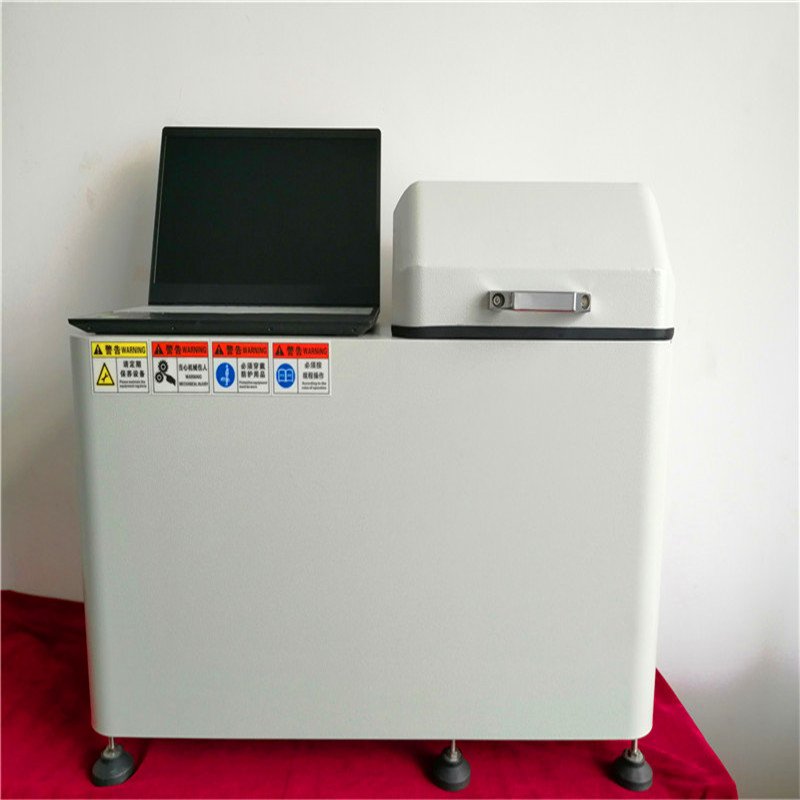

FT-301系列
直接聯系
寧波瑞柯微智能科技有限公司
浙江寧波
面議
ROOKO
FT-301系列
12676
10-8～2×105Ω
精度高、穩定性好，全自動型。
鋰電池材料、石墨烯、石墨類、碳素粉末、焦化、石化、粉末冶金等
高等院校、科研部門，質量檢驗機構，質量管理部門，研發部門等。
智能粉末電阻率測試的步驟
一、概述Overview：
采用一體化結構設計，將粉末比電阻的測量與粉體電阻率/電導率分析為一體，測量與數據分析通過PC軟件完成，粉體壓強與電阻值、電阻率、電導率值的變化關系；粉體受到壓縮直至平穩時，描述了粉體在壓縮體積變化過程中，電性能的變化趨勢，還可描述粉體壓縮后壓力減少過程中粉體因自身特性內聚力反彈形變或恢復過程變化曲線圖譜；采用自動操作模式運行，自動數據分析與管理。四端法測量模式。
the integration structure design, the powder ratio resistance measurements and powder resistivity/conductivity analysis for one-piece, measurement and data analysis was done by the PC software, The change relationship between the powder pressure and resistance, the resistivity and the conductivity; Powder is compressed until smooth, describes the changing trend of the electrical properties in the process of compression volume. Using automatic operation mode, automatic data analysis and management. Four terminal method of measurement.
智能粉末電阻率測試的步驟
二、適用范圍Scope of application：
需要對電性能進行分析的導電性粉末，如：鋰電池材料、石墨烯、石墨類、碳素粉末、焦化、石化、粉末冶金等生產加工企業部門；高等院校、科研部門，質量檢驗機構，質量管理部門，研發部門等。
to analyze the electrical conductive powder, such as: carbon powder plant, coking plant, petrochemical plant, powder metallurgy factory etc production and processing enterprises sector; university, scientific research department, quality inspection organization, quality management department, r&d department, etc.
智能粉末電阻率測試的步驟
三、參數資料Parameters
規格型號model | FT-301A | FT-301B | FT-301C | FT-301D | |
1.電阻resistance | 10-8～2×105Ω | 10-7～2×107Ω | 10-6～2×106Ω | 10-5～2×106Ω | |
2.電阻率范圍Resistivity | 10-8～2×105Ω-cm | 10-7～2×107Ω-cm | 10-6～2×106Ω-cm | 10-5～2×106Ω-cm | |
3.電導率Conductivity | 5 ×10-5～108s/cm | 5×10-7～107s/cm | 5×10-6～106s/cm | 5×10-6～105s/cm | |
4.測試電流范圍 current | 0-10A，*小100uA | 1μA，10μA，100μA，1mA，10mA，1000mA | |||
5.測量電壓量程 Voltage | 0-2v；分辨率0.1Uv 精度Accuracy 0.1% | 電壓量程voltage：2mV 分辨率20mV 200mV 2V Resolution：0.1uV 測量精度±（0.1%） | |||
6.電流精度Current Accuracy | ±0.1% | ±0.1% | ±0.2%
| ||
7.電阻精度Resistance Accuracy | ≤0.3%標準電阻standard resistance 分辨率0.01μΩ | ≤0.3%標準電阻standard resistance 分辨率0. 1μΩ | |||
8.PC軟件界面display | 電阻值、電阻率、電導率值、溫度、壓強值、單位自動換算、橫截面、高度、曲線圖譜、報表等. resistance, resistivity, conductivity, temperature, pressure value, the unit automatically conversion, cross-section, height | ||||
9.樣品高度Sample height | 樣品高度范圍：0.000-10.000mm，測量分辨率0.001mm， 可測樣品壓縮厚度0.1mm Sample height range: 0.000-10.000mm, measurement resolution 0.001mm, the minimum measurable sample compression thickness 0.1mm | ||||
10.溫濕度范圍 Temperature humidity range | 常溫-50度；濕度：20%-98%/ Room temperature -50 degrees, humidity：20%-98% | ||||
11.恒壓時間 time setting | 0-99.9S | ||||
12.標配標準件Standard Parts | a.標準校準電阻1個；b.標準高度校準件1個 a. standard calibration resistance 1; b. standard height calibration 1 | ||||
1. 測試方式 Test mode | a.四端測量法Four-terminal measurement method b.自動測量Automatic measurement | ||||
14.傳感器壓力Pressure Sensors | 200kg；(其他規格可以定制) | ||||
15.粉末模具Powder Mold | 模具Mold：內徑inner diameter 10mm； 20mm；高height 25mm ；（選購choose to buy） | ||||
16.加壓方式Pressurized way | 自動Automatic | ||||
17.脫模方式Stripping mode | 自動Automatic | ||||
18.電極材質Electrode | 紫銅Copper material | ||||
19.吸塵系統 Vacuuming system | 外置吸塵處理External dust treatment | ||||
20.誤差 | 3%；重復性誤差2%以內.（因不同材料本身特性因素影響，誤差不同，人為因數除外） | ||||
21.工作電源power supply | 輸入: AC 220V±10% ,50Hz 功 耗：<60W Input: AC220V ± 10%, 50Hz Power consumption:<60W | ||||
22. 主機外形尺寸dimensions | 約About：H700mm*L650mm*D300mm | ||||
23.凈重量 Net Weight | 約About 45kg
| ||||
24. 標配外選購Others buy | a.電腦和打印機依據客戶要求配置； b.計量證書1份 c.水分儀 d.真密度儀 a. computers and printers based on customer configuration requirements. b. Measurement certificate 1. c. moisture meter d. true density meter | ||||
