RXH型熱風循環烘箱
2534
RXH Series Hot Air Oven
簡介(Brief)：
l 主要用于制藥、食品、化工、電子行業產品的干燥。
Mainly applied by pharmacy, foodstuff , chemical and electrical industry to dry the products.
l 不銹鋼制作，主要由熱源，風機，烘盤和烘車組成。以蒸汽或電源為熱源，通過熱交換器加熱后，熱風經風機牽引在箱內循環流動并與物料進行熱交換，帶走物料揮發的濕氣，干燥物料。
The machine is made with stainless steel, mainly consisting of heat source, blower, tray and shelf.
With steam or electricity as the heat source, the hot air heated by exchanger will circularly flow into inner oven by blower and meanwhile take away the moisture volatilized from materials to finally dry the materials.

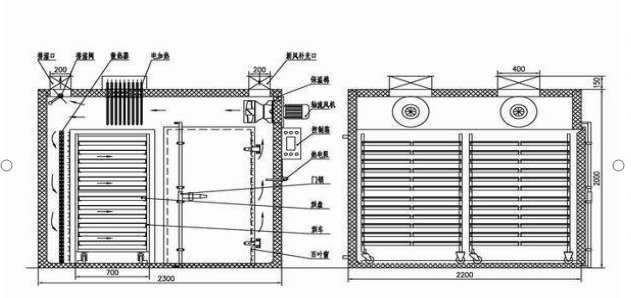

結構示意圖（Schematic diagram）
技術參數(Technical Specifications):
| 型號Model | RXH-O | RXH-I | RXH-Ⅱ | RXH-Ⅲ | RXH-IV | |
| 產量Capacity | 60kg | 120kg | 240kg | 360kg | 480kg | |
| 電加熱功率Heat Power | 9KW | 15KW | 30 KW | 45 KW | 63KW | |
| 風機功率Fan Power | 0.55kw | 0.55kw | 1.1kw | 1.65kw | 2.2kw | |
| 蒸汽消耗Steam Consumption | 10kg/h | 20kg/h | 45kg/h | 71kg/h | 80kg/h | |
| 散熱面積Radiation Area | 5㎡ | 20㎡ | 40㎡ | 80㎡ | 100㎡ | |
| 風量Blast | 3450m3/h | 3450 m3/h | 6900 m3/h | 10350 m3/h | 13800 m3/h | |
| 溫差Temperature Deviation | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | |
| 烘盤數量Tray Number | 24 | 48 | 96 | 144 | 192 | |
| 烘車數量Shelf Number | 1 | 2 | 4 | 6 | 8 |
| 外形尺寸Overall Size | 1.4*1.2*2.3m | 2.3*1.2*2.3m | 2.3*2.2*2.3m | 3．4*2.2*2.3m | 4.46*2.2*2.3 |
