裝載系數大、設備占地面積小。混合粘性或具有凝聚性的物料時，清洗困難。
-----------------------------------------------------------------------------------------------------------------
臥式螺帶混合機概述 Description

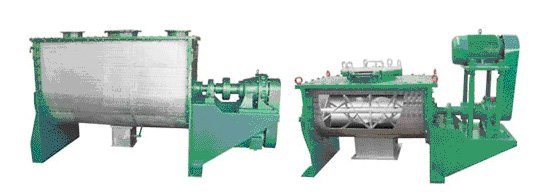

臥式螺帶混合機由容器、螺旋攪拌葉片和傳動部件組成：螺旋葉片一般做成雙層或三層，外層螺旋將物料從兩側向中央匯集，內層螺旋將物料從中央兩側輸送，形成對流混合。
The model is composed of a container, stirring blades and transmission components: helical blade is generally made of two or three layers, the outer spiral material collected from both sides to the central, inner spiral material from central conveying, the formation of convective mixing.
-----------------------------------------------------------------------------------------------------------------
臥式螺帶混合機特點 Featrures
◎ 裝載系數大、設備占地面積小。
◎ 混合粘性或具有凝聚性的物料時，清洗困難。
◎ Big coefficient of loading、small occupied area.
◎ It is difficult to clean when it is used to mix viscous or adhesive material.
-----------------------------------------------------------------------------------------------------------------
臥式螺帶混合機應用范圍 Application
◎ 螺帶混合機一般用于粘性或有凝聚性的粉粒體的混合以及粉粒體中添加液體及糊狀物料的混合，同時由于粘性物料清洗困難的特點，適用于產量大、不經常更換品種的場合混合。
◎ The ribbon mixer is generally used in the mixing of viscous or cohesion of adding mixture of liquid and pasty materials of powder mixing and powder, and at the same time, because of the characteristics of the viscous material cleaning difficult, suitable for mixed production, not replace the variety of situations.
-----------------------------------------------------------------------------------------------------------------
臥式螺帶混合機技術參數 Technical parameters
| 型號Type | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| 一次性混合 Kg one job (kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| 電機功率 Tnstaued capaci (kg) | 1.5-4 | 3-3.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 37-55 |
| 設備重量 Kg weight (kg) | 300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 | 6800 |
