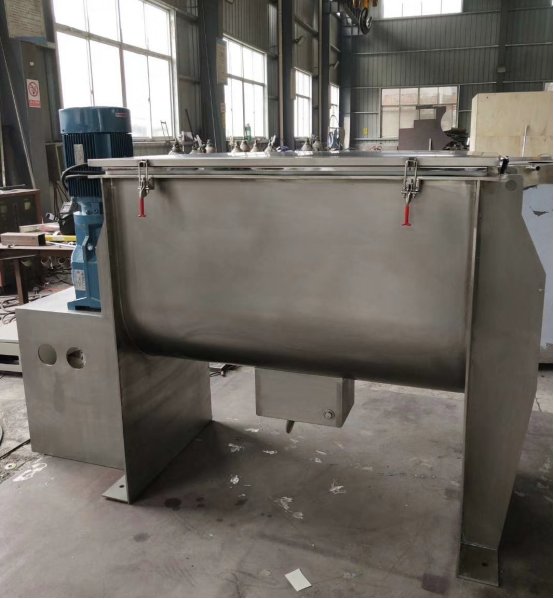

WLDH型螺帶式混合機
直接聯系
江陰市般匠機械制造有限公司
江蘇
面議
般匠機械
WLDH型螺帶式混合機
1601
簡介(Brief)：
l 主要用于制藥、化工、食品等行業的混合。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 適用于干顆粒、粉末和粘稠物料的混合，適合大中批量生產。
Suitable to blend dry granules, powders or pasty materials; suit to large or medium scale production.
l 不銹鋼制作，二層螺旋槳葉連續旋轉混合，外層螺旋將物料從兩側向中央匯集，內層螺旋將物料從中央向兩側分流，使物料在混合槽內形成對流混合，從而達到高均勻度混合效果。
The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本機根據要求可配有加熱和噴霧功能。
Heating and spray system is configurable upon request.
l The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本機根據要求可配有加熱和噴霧功能。
Heating and spray system is configurable upon request.

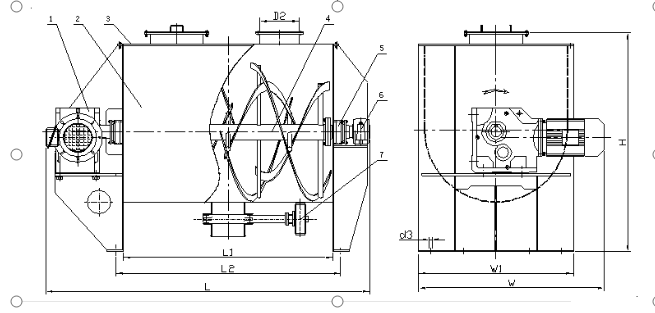

結構示意圖（Schematic diagram）：
1. 減速機(Reducer) 2.殼體(Drum) 3.筒蓋(Lid) 4.螺帶(Ribbon Paddle) 5.軸端密封(Sealer)
6.軸承(Bearing) 7.出料閥(Discharge Port)

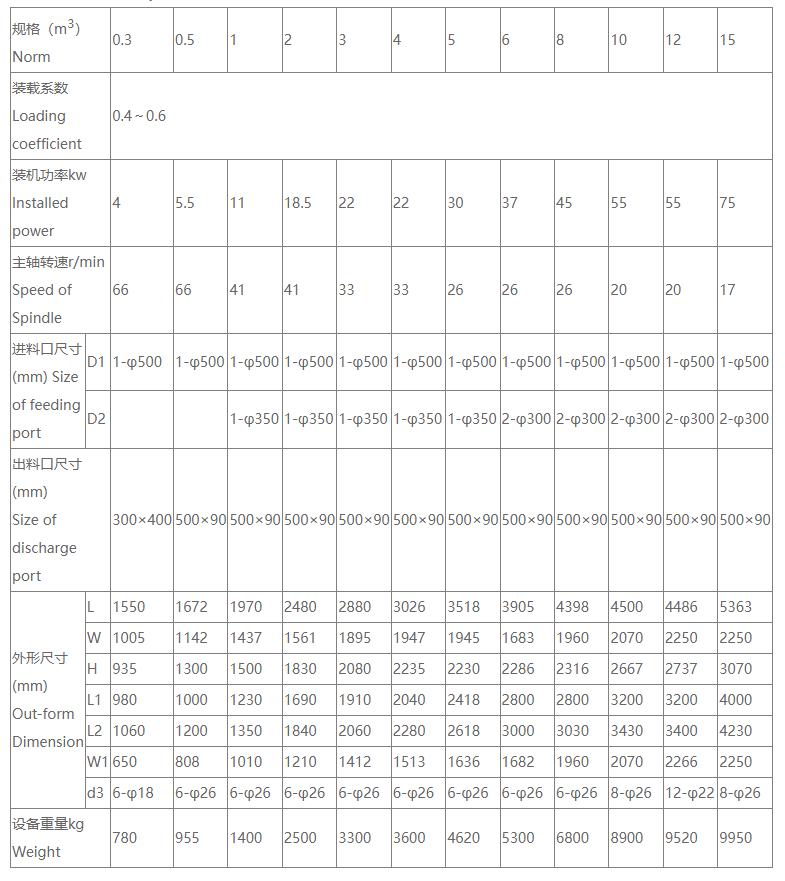

技術參數(Technical Specifications)：
以上為標準型設備參考，非標準型參考具體圖紙。
Parameters above are for standard machines. For non-standard ones please refer to the specific drawings.
