CMP帶膠泥密封防爆格蘭（PXSS2K系列）
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭
CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭
CMP帶膠泥密封防爆格蘭（PXSS2K-M20系列）
CMP防爆格蘭代理商: 上海頤品自動化科技有限公司
PXSS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland
For all types of Unarmoured & Braid Armour Cables
Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland
? Direct & remote installation
? Superior levels of cable retention
? Displacement type environmental seal
? Compound barrier type flameproof seal
? Designed to prevent Coldflow
? Deluge protected
? -60°C to +85°C
? Class I Zone 1, 21 and Zone 2, 22
? Globally marked, IECEx, ATEX, UL & cCSAus
? once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types
CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

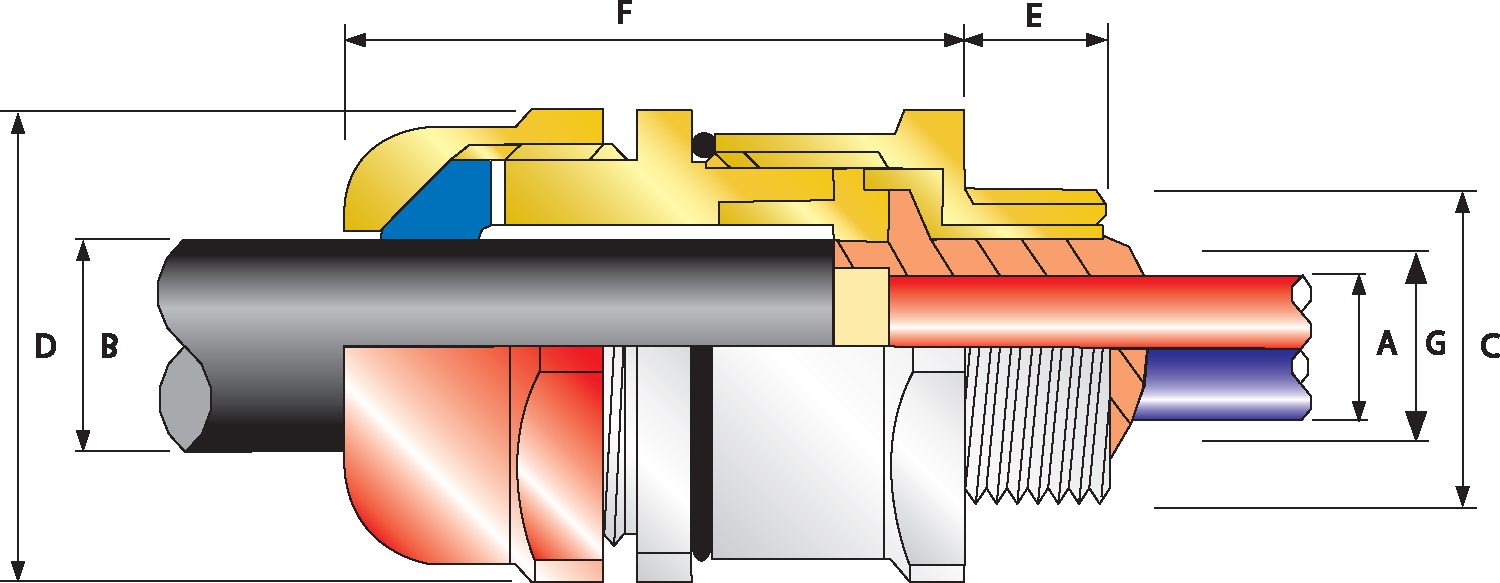

| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Number of Cores | Diameter Over Conductors 'A' | Cable Bedding Diameter 'G' | Overall Cable Diameter 'B' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) | |||||||
| Standard | Option | |||||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | NPT | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix | ||||||
| 20S16 | M20 | 15.0 | ?' | 19.9 | ?" | 21 | 8.6 | 8.6 | 3.1 | 8.6 | 30.0 | 33.0 | 53.1 | 20S16 | PXSS2K | 1RA | PVC06 | 0.20 |
| 20S | M20 | 15.0 | ?' | 19.9 | ?" | 21 | 11.7 | 11.7 | 6.1 | 11.7 | 30.0 | 33.0 | 53.1 | 20S | PXSS2K | 1RA | PVC06 | 0.20 |
| 20 | M20 | 15.0 | ?' | 19.9 | ?" | 21 | 12.6 | 12.9 | 6.5 | 14.0 | 30.0 | 33.0 | 54.2 | 20 | PXSS2K | 1RA | PVC06 | 0.20 |
| 20L | M20 | 15.0 | ?' | 19.9 | ?" | 21 | 12.6 | 12.9 | 10.0 | 15.9 | 30.0 | 33.0 | 54.2 | 20L | PXSS2K | 1RA | PVC06 | 0.20 |
| 25 | M25 | 15.0 | ?' | 20.2 | 1" | 30 | 17.5 | 17.9 | 11.1 | 20.0 | 36.0 | 39.6 | 60.0 | 25 | PXSS2K | 1RA | PVC09 | 0.33 |
| 32 | M32 | 15.0 | 1' | 25.0 | 1 ?" | 38 | 23.6 | 23.9 | 17.0 | 26.3 | 41.0 | 45.1 | 61.1 | 32 | PXSS2K | 1RA | PVC10 | 0.39 |
| 32L | M32 | 15.0 | 1' | 25.0 | 1 ?" | 38 | 23.6 | 23.9 | 20.0 | 27.4 | 41.0 | 45.1 | 61.1 | 32L | PXSS2K | 1RA | PVC10 | 0.59 |
| 40 | M40 | 15.0 | 1 ?' | 25.6 | 1 ?" | 59 | 30.0 | 30.3 | 22.0 | 32.1 | 50.0 | 55.0 | 62.4 | 40 | PXSS2K | 1RA | PVC13 | 0.56 |
| 50S | M50 | 15.0 | 1 ?' | 26.1 | 2" | 89 | 36.6 | 36.9 | 29.5 | 38.2 | 55.0 | 60.5 | 65.2 | 50S | PXSS2K | 1RA | PVC15 | 0.66 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 ?" | 115 | 41.0 | 41.3 | 35.6 | 44.0 | 60.0 | 66.0 | 67.6 | 50 | PXSS2K | 1RA | PVC18 | 0.73 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 ?" | 115 | 47.9 | 48.4 | 40.1 | 49.9 | 70.1 | 77.1 | 71.1 | 63S | PXSS2K | 1RA | PVC21 | 1.07 |
| 63 | M63 | 15.0 | 2 ?' | 39.9 | 3" | 115 | 53.7 | 54.0 | 47.2 | 55.9 | 75.0 | 82.5 | 70.4 | 63 | PXSS2K | 1RA | PVC23 | 1.06 |
| 75S | M75 | 15.0 | 2 ?' | 39.9 | 3" | 140 | 59.9 | 60.2 | 52.8 | 61.9 | 80.0 | 88.0 | 75.3 | 75S | PXSS2K | 1RA | PVC25 | 1.30 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 ?" | 140 | 64.3 | 64.2 | 59.1 | 67.9 | 85.0 | 93.5 | 74.9 | 75 | PXSS2K | 1RA | PVC27 | 1.30 |
| 90 | M90 | 24.0 | 3 ?' | 42.8 | 4" | 140 | 75.3 | 75.6 | 66.6 | 79.4 | 108.0 | 118.8 | 94.8 | 90 | PXSS2K | 1RA | PVC31 | 3.02 |
| 100 | M100 | 24.0 | 3 ?' | 42.8 | 4" | 200 | 85.6 | 85.9 | 76.0 | 90.9 | 123.0 | 135.3 | 86.3 | 100 | PXSS2K | 1RA | LSF33 | 4.00 |
| Dimensions displayed in millimeters unless otherwise stated | ||||||||||||||||||
