CMP鎧裝防爆格蘭密封接頭（E1FW系列）
英國CMP鎧裝防爆格蘭E1FW系列（CMP cable gland）
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland
For all types of Steel & Aluminium Wire Armoured Cables
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭
CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭
Internationally Approved, Explosive Atmosphere Cable Gland
?
? Direct & remote installation
? Displacement type flameproof inner seal
? Controlled outer ‘load retention’ seal
? Unique OSTG prevents overtightening
? Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)
? -60°C to +130°C
? Class I Zone 1, 21 ａnd Zone 2, 22 Class I Division 2 ABCD
? Globally marked, IECEx, ATEX & cCSAus
? Superior EMC performance
Note: ? Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).
Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.
CLICK HERE TO VIEW HOW TO ORDER

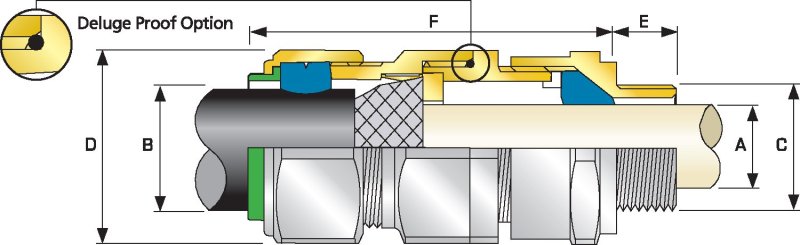

| Cable Gland Size | Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter ＇A＇ | Overall Cable Diameter ＇B＇ | Armour Range ? Grooved Cone (X) | Across Flats ＇D＇ | Across Corners ＇D＇ | Protrusion Length ＇F＇ | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) | |||||||||
| Standard | Option | ||||||||||||||||||
| Metric | Thread Length (Metric) ＇E＇ | NPT | Thread Length (NPT) ＇E＇ | NPT | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix | ||||
| 20S16 | M20 | 15.0 | ?＇ | 19.9 | ?" | 3.1 | 8.6 | 6.1 | 13.1 | 0.3 | 1.0 | 24.0 | 26.4 | 72.5 | 20S16 | E1FW | 1RA | PVC04 | 0.16 |
| 20S | M20 | 15.0 | ?＇ | 19.9 | ?" | 6.1 | 11.6 | 9.5 | 15.9 | 0.3 | 1.0 | 24.0 | 26.4 | 70.0 | 20S | E1FW | 1RA | PVC04 | 0.15 |
| 20 | M20 | 15.0 | ?＇ | 19.9 | ?" | 6.5 | 13.9 | 12.5 | 20.9 | 0.4 | 1.0 | 30.5 | 33.6 | 73.0 | 20 | E1FW | 1RA | PVC06 | 0.21 |
| 25S | M25 | 15.0 | ?＇ | 20.2 | 1" | 11.1 | 19.9 | 14.0 | 22.0 | 0.4 | 1.2 | 37.5 | 41.3 | 89.0 | 25S | E1FW | 1RA | PVC09 | 0.33 |
| 25 | M25 | 15.0 | ?＇ | 20.2 | 1" | 11.1 | 19.9 | 18.2 | 26.2 | 0.4 | 1.2 | 37.5 | 41.3 | 89.0 | 25 | E1FW | 1RA | PVC09 | 0.33 |
| 32 | M32 | 15.0 | 1＇ | 25.0 | 1 ?" | 17.0 | 26.2 | 23.7 | 33.9 | 0.4 | 1.2 | 46.0 | 50.6 | 86.0 | 32 | E1FW | 1RA | PVC11 | 0.43 |
| 40 | M40 | 15.0 | 1 ?＇ | 25.6 | 1 ?" | 22.0 | 32.1 | 27.9 | 40.4 | 0.4 | 1.6 | 55.0 | 60.5 | 90.0 | 40 | E1FW | 1RA | PVC15 | 0.62 |
| 50S | M50 | 15.0 | 1 ?＇ | 26.1 | 2" | 29.5 | 38.1 | 35.2 | 46.7 | 0.4 | 1.6 | 60.0 | 66.0 | 91.0 | 50S | E1FW | 1RA | PVC18 | 0.75 |
| 50 | M50 | 15.0 | 2＇ | 26.9 | 2 ?" | 35.6 | 44.0 | 40.4 | 53.0 | 0.6 | 1.6 | 70.1 | 77.1 | 95.0 | 50 | E1FW | 1RA | PVC21 | 0.95 |
| 63S | M63 | 15.0 | 2＇ | 26.9 | 2 ?" | 40.1 | 49.9 | 45.6 | 59.4 | 0.6 | 1.6 | 75.0 | 82.5 | 102.0 | 63S | E1FW | 1RA | PVC23 | 1.34 |
| 63 | M63 | 15.0 | 2 ?＇ | 39.9 | 3" | 47.2 | 55.9 | 54.6 | 65.8 | 0.6 | 1.6 | 80.0 | 88.0 | 104.0 | 63 | E1FW | 1RA | PVC25 | 1.34 |
| 75S | M75 | 15.0 | 2 ?＇ | 39.9 | 3" | 52.8 | 61.9 | 59.0 | 72.0 | 0.6 | 1.6 | 90.0 | 99.0 | 115.0 | 75S | E1FW | 1RA | PVC28 | 2.11 |
| 75 | M75 | 15.0 | 3＇ | 41.5 | 3 ?" | 59.1 | 67.9 | 66.7 | 78.4 | 0.6 | 1.6 | 100.0 | 110.0 | 117.0 | 75 | E1FW | 1RA | PVC30 | 2.42 |
| 90 | M90 | 24.0 | 3 ?＇ | 42.8 | 4" | 66.6 | 78.6 | 76.2 | 90.3 | 0.8 | 1.6 | 114.3 | 125.4 | 147.0 | 90 | E1FW | 1RA | PVC32 | 4.21 |
| 100 | M100 | 24.0 | 3 ?＇ | 42.8 | 4" | 76.0 | 90.9 | 86.1 | 101.4 | 0.8 | 1.6 | 123.0 | 135.3 | 140.0 | 100 | E1FW | 1RA | LSF33 | 4.45 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 101.5 | 110.2 | 0.8 | 1.6 | 133.4 | 146.7 | 162.0 | 115 | E1FW | 1RA | LSF34 | 6.19 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 110.2 | 123.2 | 0.8 | 1.6 | 152.4 | 167.6 | 174.0 | 130 | E1FW | 1RA | LSF35 | 8.34 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||||
