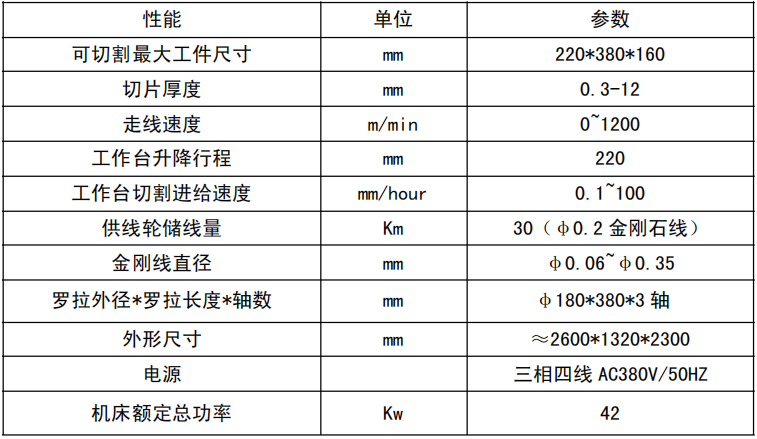

技術參數 Main Specifications

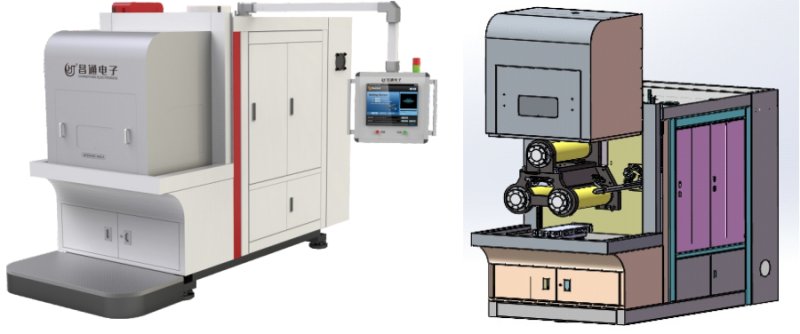

CHTXQ-380多線切割機設備用途：本機型共三羅拉，羅拉廠度為380mm，用于切割厚度0.3-12mm的產品。

Equipment use: This model has three rollers, the length of the roller is 380mm, used for cutting products  with a thickness of 0.3-

12mm.

CHTXQ-380多線切割機技術特點 Brief Introduction

1、鑄件機身，使整體結構不變形，高速運轉更穩定。

2、主軸精度0.01mm，拆裝方便。

3、下置式工作臺，材料由下向上上升切割，上下料方便。

4、三電機直連三羅拉，使三羅拉都成為主動軸，降低鋼線對羅拉的磨損，提高羅拉的使用時間。

5、裝載面積為：20mm*380mm。

6、操作使用方便，自動升降護罩，工作臺全面展開，便于材料裝卸和羅拉拆裝

7、高效低耗，設備不需要?dú)庠矗麢C(jī)耗電功率低。

1, the casting body, so that the overall structure is not deformed, high-speed operation is more stable.

2, spindle precision 0.01mm, easy to disassemble.

3, under the table, the material from the bottom up to cut, loading and unloading convenient.

4, the three motor is directly connected to the three rollers, so that the three rollers become the drive shaft, reduce the wear of the steel wire to the roller, and improve the use time of the roller.

5,the loading area is: 220mm*380mm .

6,easytooperate,automaticliftingshield,theworkbenchisfully expanded, easy to load and unload materials and roll.

7, high ef?ciency and low consumption, the equipment does not need air source, and the whole machine consumes low power.
