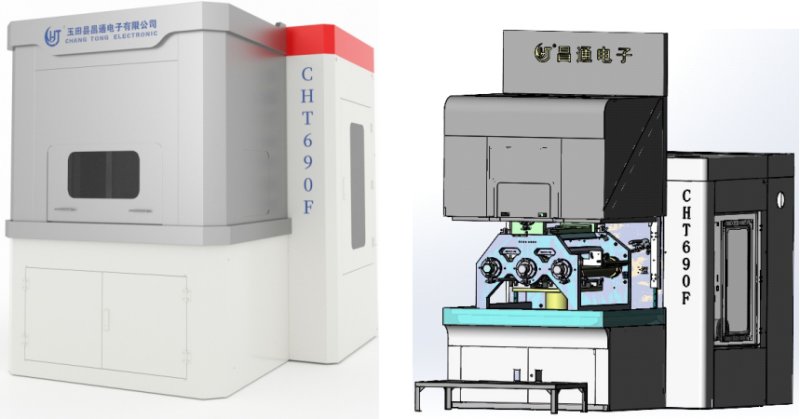

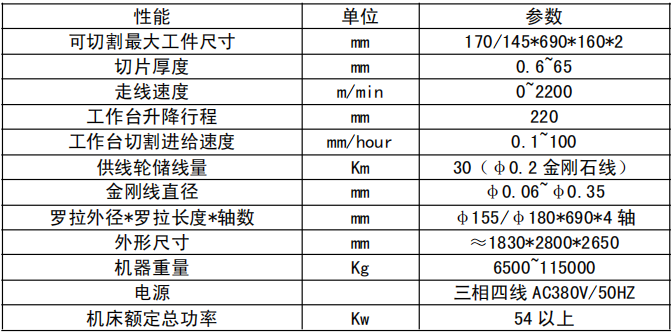

CHTXQ-690F雙料板多線切割機技術參數 Main Specifications

設備用途：本機型主要為滿足客戶切割效率而研發的一款機型，羅拉長度690mm，工作臺尺寸170/145mm*690mm*160mm*2版，它用于

厚度在0.3mm~65mm的產品的切割。

Equipment use: This model is mainly developed to meet the cutting efficiency of customers, roller length 690mm, table size

170/145mm*690mm*160mm*2 version, it is used for the thickness of 0.3mm~65mm products cutting.

CHTXQ-690F雙料板多線切割機技術特點 Brief Introduction

1、四電機獨立驅動四羅拉，使四羅拉都成為主動軸，降低鋼線對羅拉的磨損，提高羅拉的使用時間，羅拉支架安裝孔用加工中心一次加工成型，確保主軸安裝同軸度要求。

2、設備可配裝LED顯示屏，切割數據更直觀。

3、下置式工作臺，材料由下向上上升進行切割，上下料方便。

4、機器分為高速機和普通機型，高速機相對普通機型運轉更快，線速度更高，切割效率更高，切同樣材料的片厚可用更細的金剛石線。

5、帶橫動，工作臺可前后移動，可切瓦片，可實現單線切割功能。

6、裝載面積大，裝載面積為：170/145mm*690mm*160mm*2版，極大的提升了切割效率。

7、羅拉采用雙錐定位，裝卸方便，高速運轉平穩，精度可靠。

1, the four motors independently drive the four rollers, so that the four rollers are the drive shaft, reduce the wear of the steel line to the roller, improve the use of the roller, the roller bracket mounting hole with a processing center molding, to ensure that the spindle installation coaxial requirements.

2, the equipment can be equipped with LED display, cutting data is more intuitive.

3, under the table, the material from the bottom up to cut, loading and unloading convenient.

4, the machine is divided into high-speed machine and ordinary models, high-speed machine is faster than ordinary models, higher line speed, higher cutting efficiency, cutting the same material can be thinner diamond line.

5, with transverse movement, the table can be moved back and forth, can cut tiles, can achieve single-line cutting function.

6 ,the loading are aislarge, the longding areais:

170/145mm*690mm*160mm*2 version, greatly improving the cutting efficiency.

7, spindle accuracy ≤0.01mm, the use of structure dust (patent No. ZL201320681902.7) more stable operation, easy disassembly8, easy to
