切割機
199

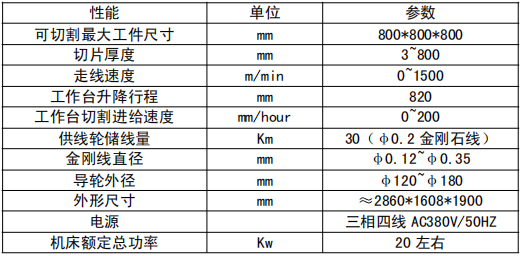

單線兩方向切割機技術參數 Main Specifications
設備用途：本機型主要用于切割寶石、大理石等硬脆性材料，不使用羅拉，既可以橫向切割也可以縱向切割，工作臺尺寸800mm*800mm*800mm，它主要用于厚度在3mm~800mm的產品的切割。
Equipment use: This model is mainly used for cutting gems, marble and other hard and brittle materials, do not use roller, both can be transverse cutting and longitudinal cutting, table size 800mm*800mm*800mm, it is mainly used for the thickness of 3mm~800mm products cutting.
單線兩方向切割機技術特點 Brief Introduction
1、此設備無需羅拉，用導輪直接引入鋼線進行切割。
2、旋轉工作臺，材料在工作臺上旋轉進行切割，上下料方便。
3、裝載面積為：800mm*800mm*800mm，極大的提升了切割效率。
4、經過導輪縱向或者橫向移動進行切割，裝卸方便，高速運轉平穩，精度可靠。
5、主軸精度≤0.01mm，采用結構防塵，運行更穩定，拆裝方便。
6、操作使用方便，工作臺全面展開，便于材料裝卸。
7、高效低耗，設備不需要氣源，整機耗電功率低。
1, this equipment does not need a roller, with a guide wheel directly into the steel wire for cutting.
2, rotary table, the material is rotated on the workbench for cutting, easy to load and unload.
3, the loading area is: 800mm*800mm*800mm, greatly improving the cutting efficiency.
4, through the guide wheel longitudinal or transverse movement for cutting, easy loading and unloading, stable highspeed operation, reliable accuracy.
5 , spindle accuracy ≤0.01mm, the use of structure dust (patent No.ZL201320681902.7), more stable operation, easy disassembly.
6, the operation is easy to use, the workbench is fully expanded, easy to load and unload materials.
7, high efficiency and low consumption, the equipment does not need air source, low
